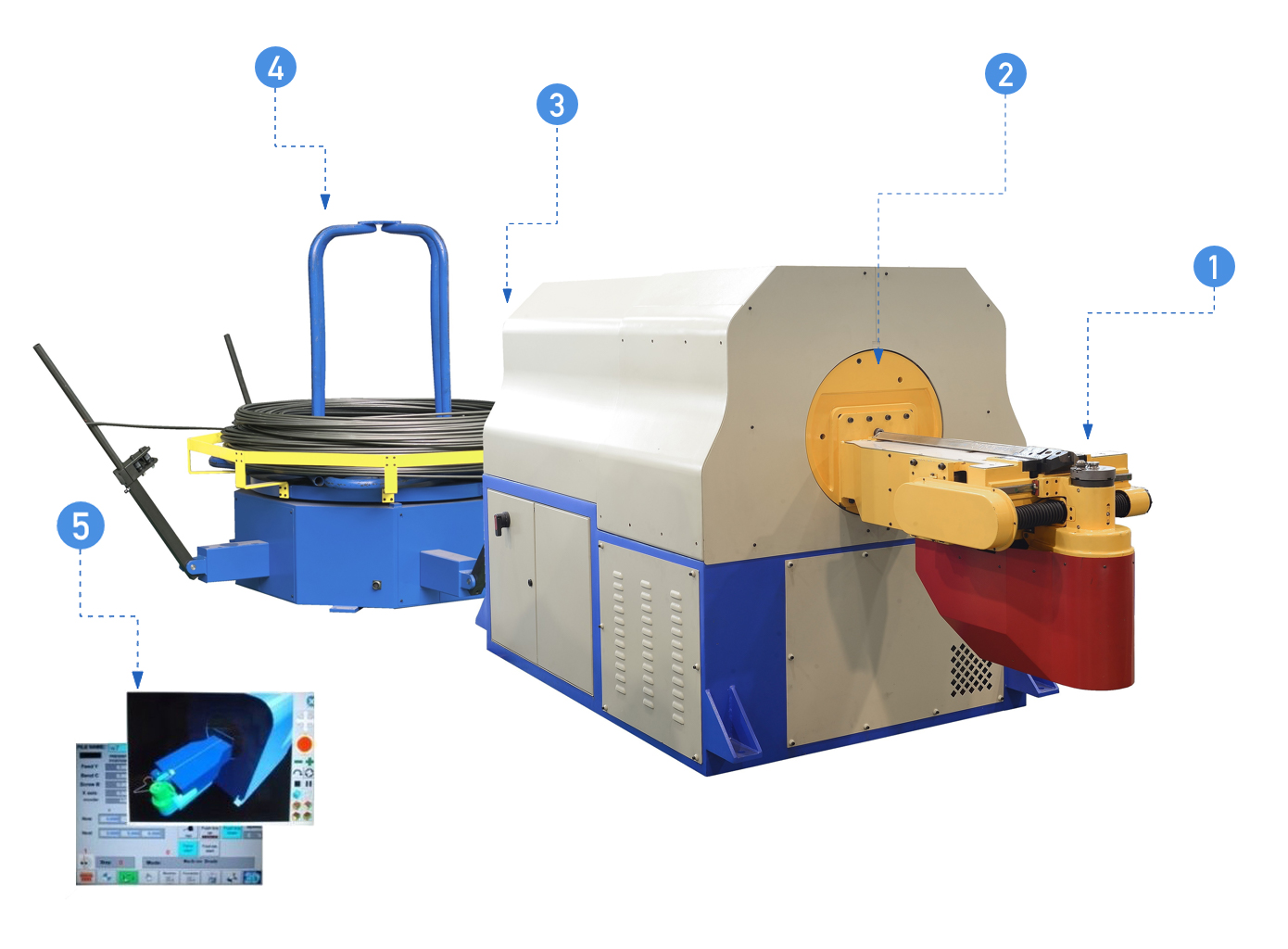

- bending by servo motor
- cutting by hydraulic
- tooling shift by servo motor
- concentric tooling design, enhance bending versatility
-
- customized work-head, eliminates possibility of interference
- work-head rotation by servo motor
-
- straightening by hydraulic
- feeding by servo motor
- uncoiling driven by AC motor
-
- Controller :
- IPC base
- 15" inches touch screen display
- facilitated with 3D simulation
|
Specification |
Unit |
Wire Bender WB 10-A |
Wire Bender WB 14-A |
|
Bending capacity/ O.D. |
mm |
4~10 |
6~14 |
|
Bending speed |
deg/sec |
1000 |
600 |
|
Bending repeatability |
degree |
±0.01 |
±0.01 |
|
Feeding speed |
m/min |
50 |
50 |
|
Feeding repeatability |
mm |
±0.1 |
±0.1 |
|
Work-head rotation speed |
deg/sec |
440 |
440 |
|
Work-head rotation repeatability |
degree |
±0.01 |
±0.01 |
|
Max pressure |
kgf/cm² |
140 |
140 |
|
Total power |
kw |
13.4 |
14.9 |
|
Width |
mm |
1300 |
1300 |
|
Height |
mm |
1715 |
1715 |
|
Length |
mm |
3450 |
3450 |
|
Weight |
kg |
2400 |
2400 |
