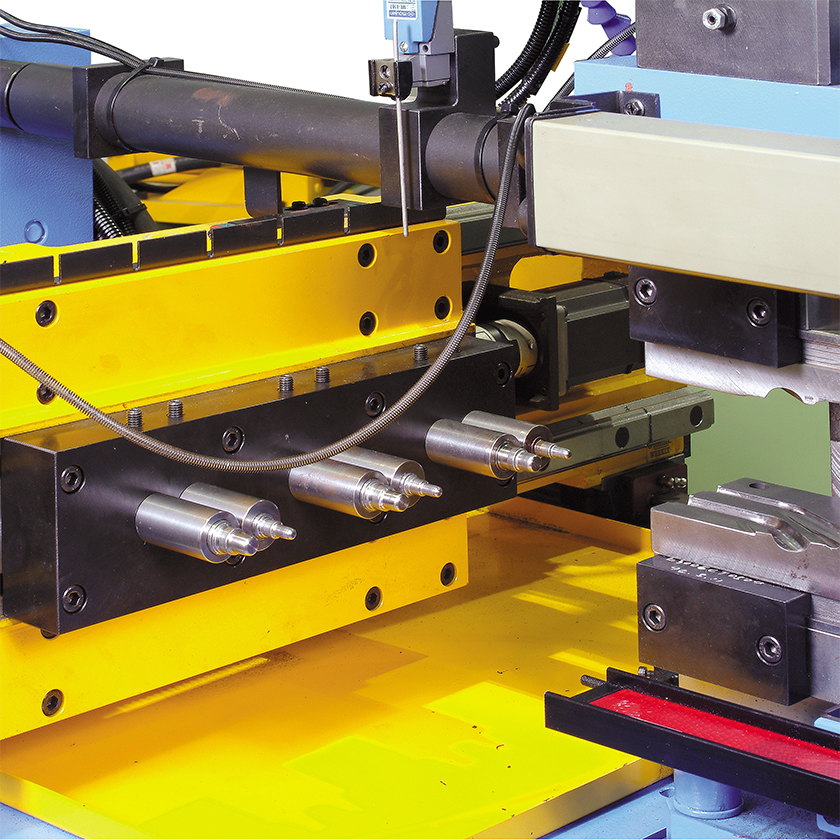

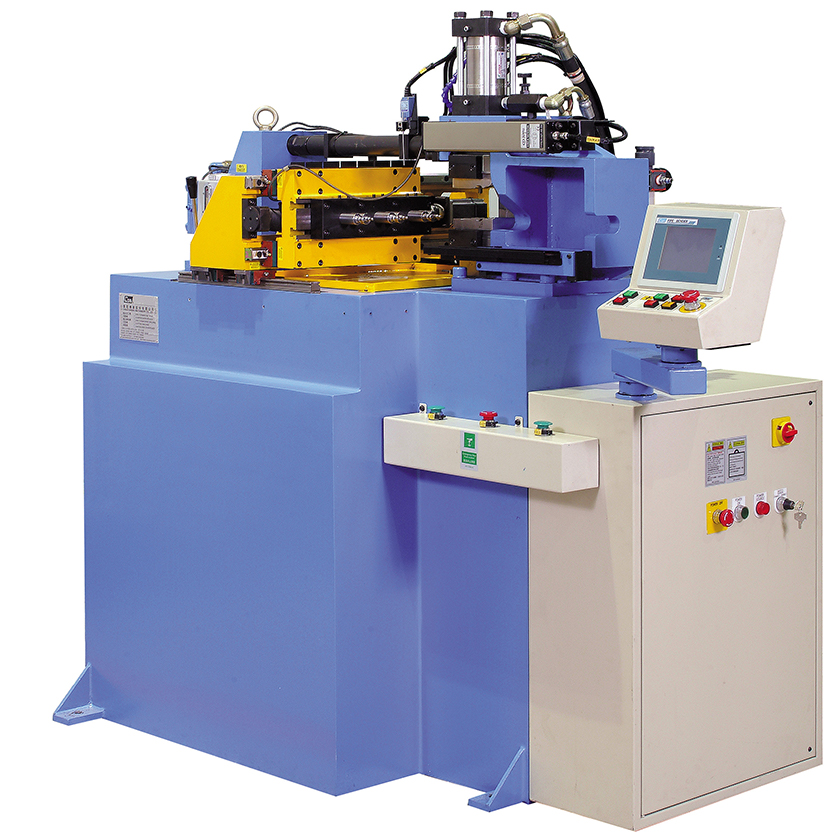

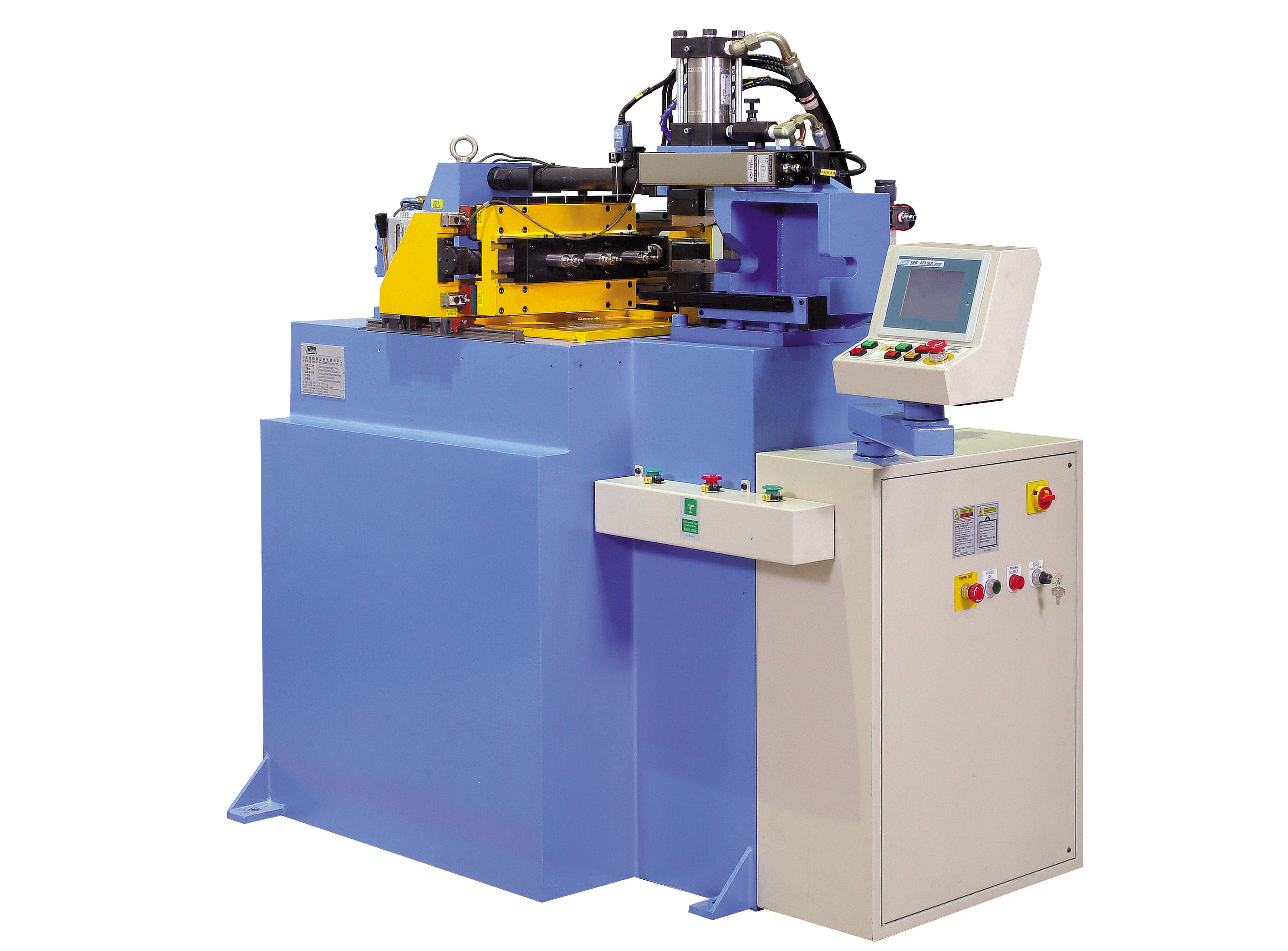

End-forming EF series-plane type

max capacity OD/mn	forming station	working height /mm	total power /kw	max pressure kgf/cm²	part no.
20	6	1220	5.5	170	EF20
30	6	1220	5.5	170	EF30
50	6	1250	7.5	170	EF50

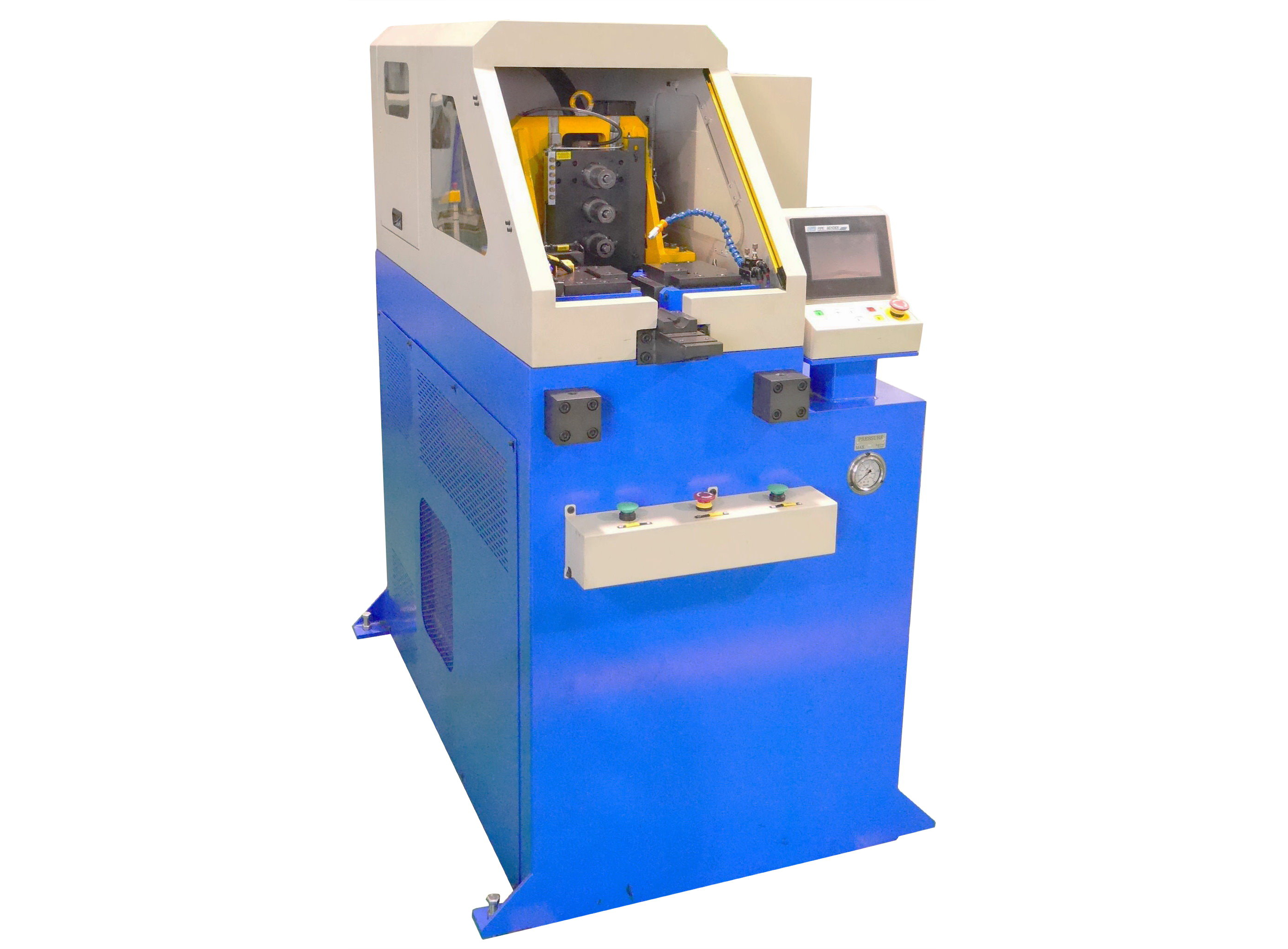

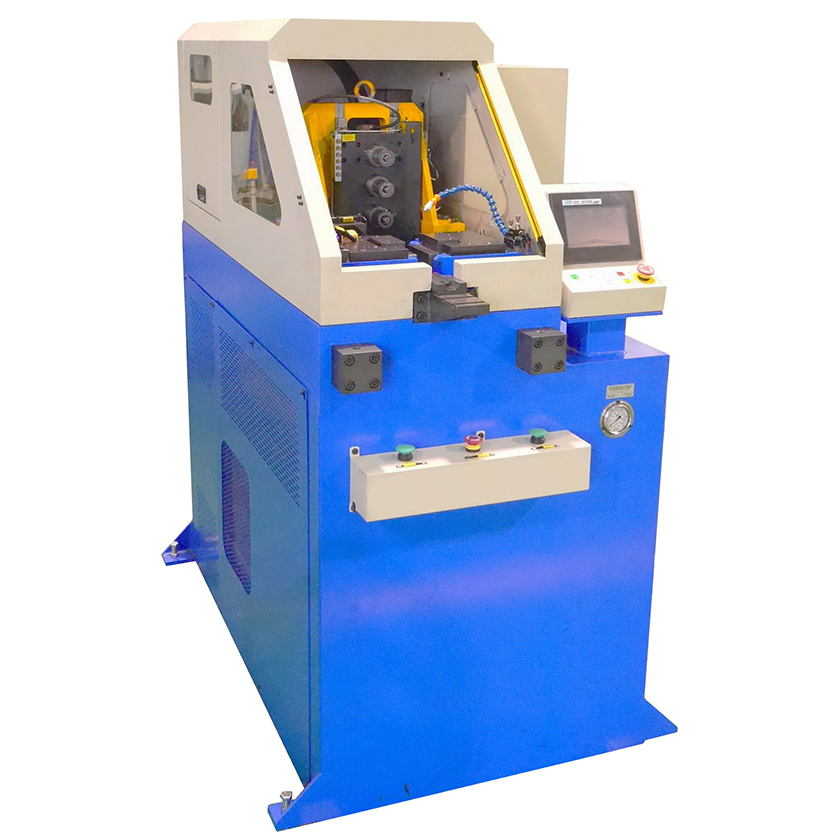

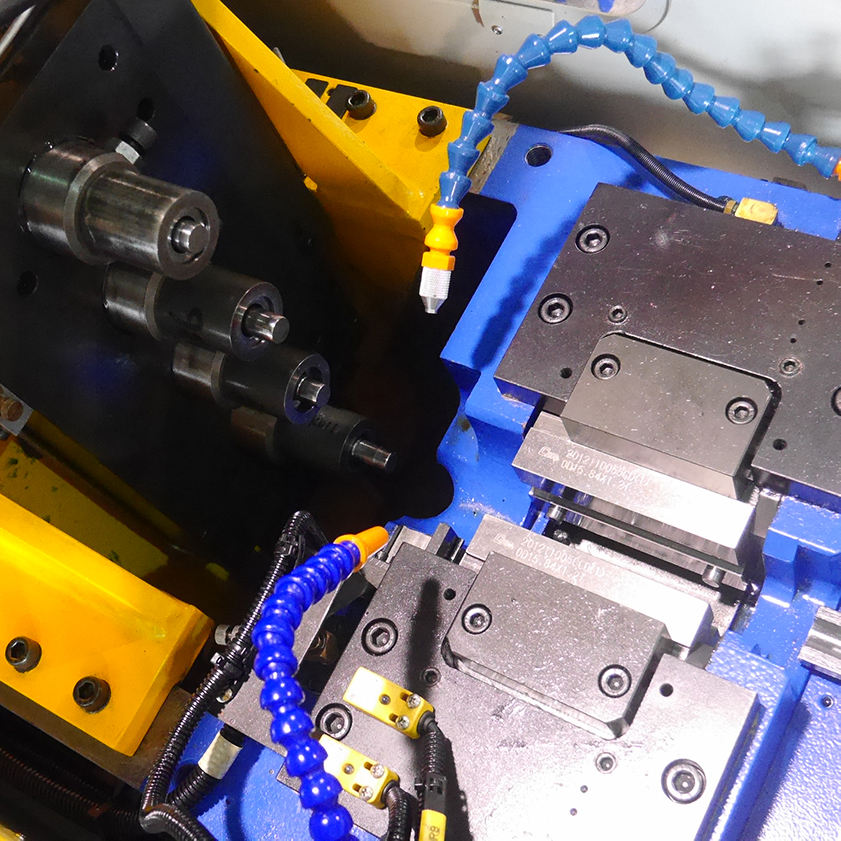

End-forming EF series-vertical type

max capacity OD/mn	forming station	working height /mm	total power /kw	max pressure kgf/cm²	part no.
20	6	1220	5.5	140	EF20VH
30	6	1220	5.5	140	EF30VH
50	6	1250	7.5	170	EF50VH

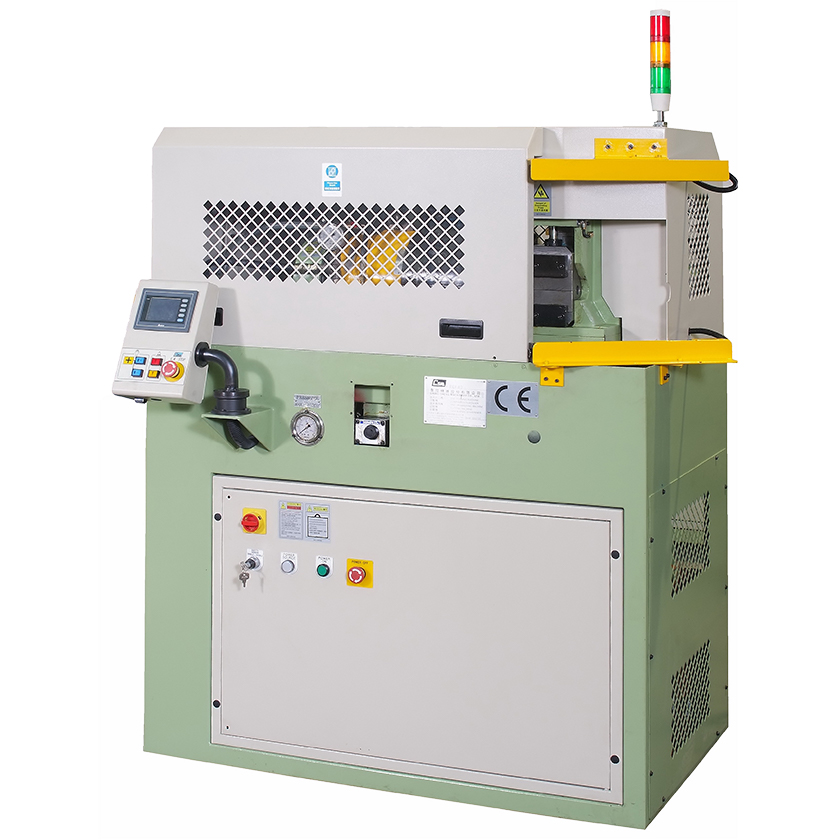

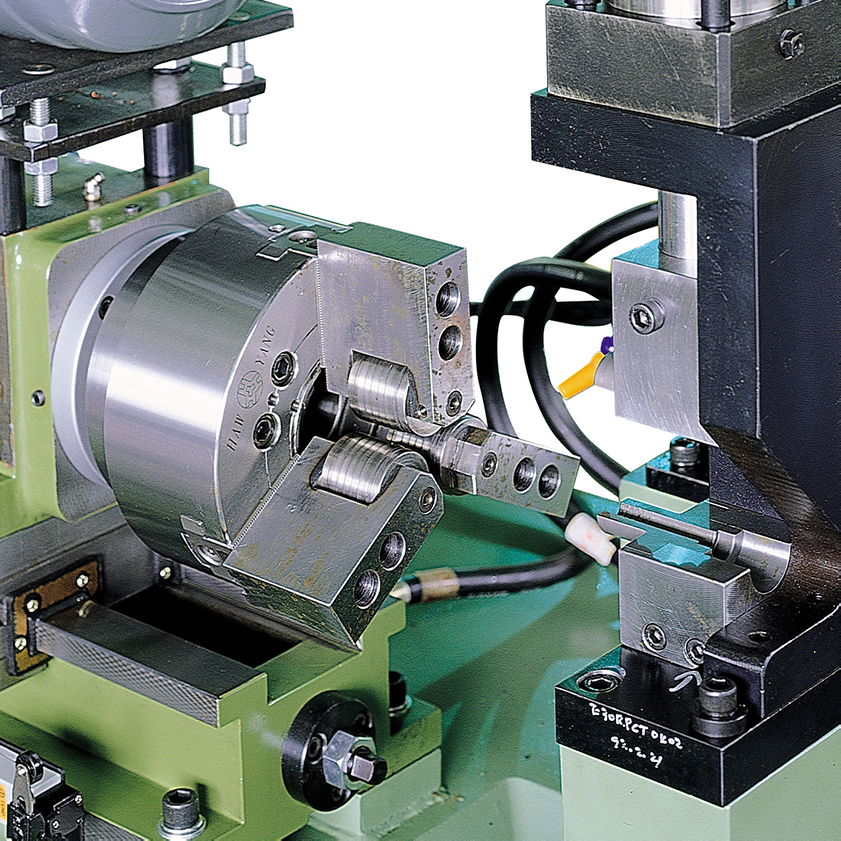

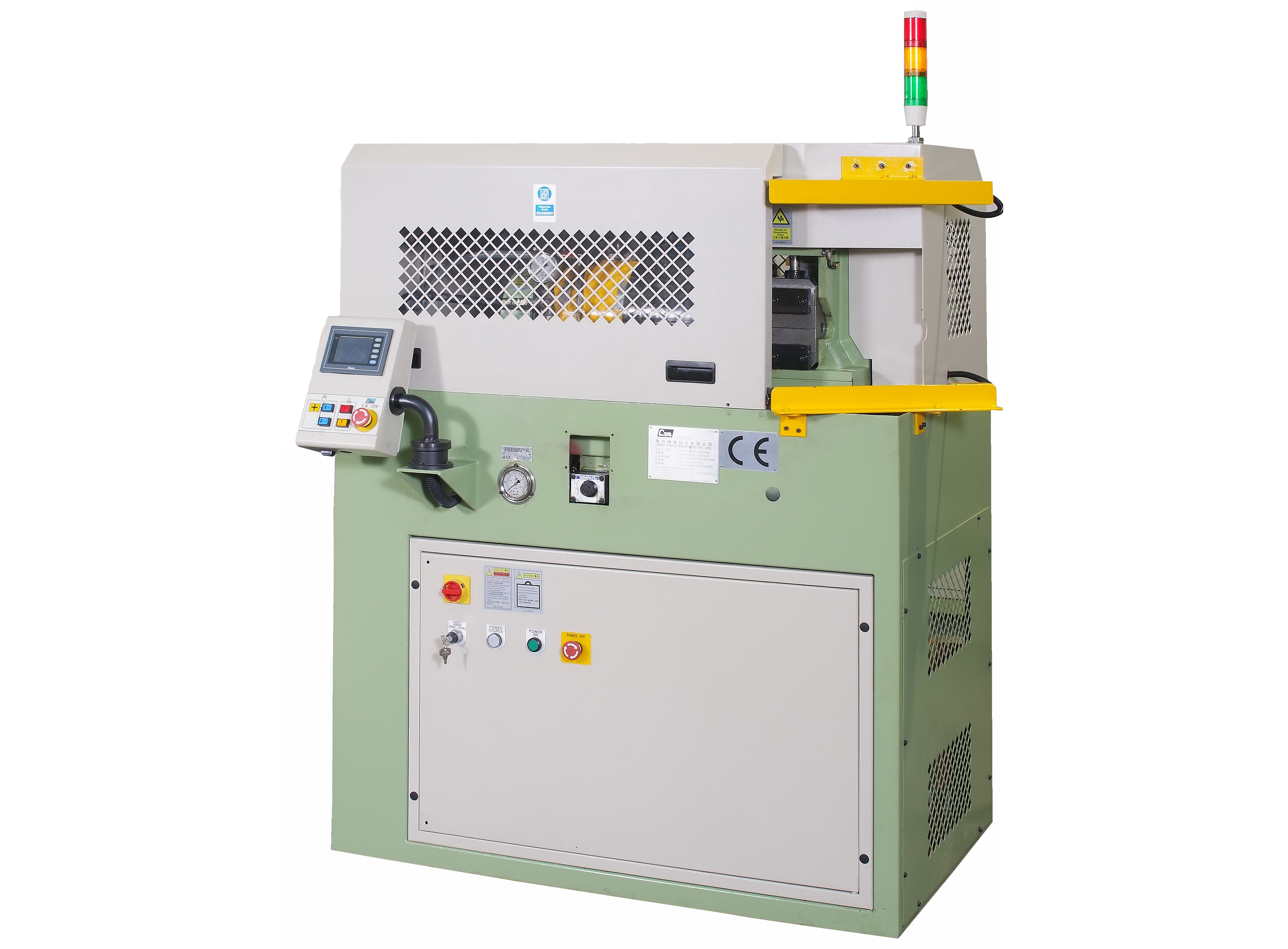

Grooving REF series

max capacity OD/mm	max forming stroke/mm	working height /mm	total power /kw	max pressure kgf/cm²	part no.
30	6.5	1060	3.7	100	REF30
40	5	1210	4.4	70	REF40

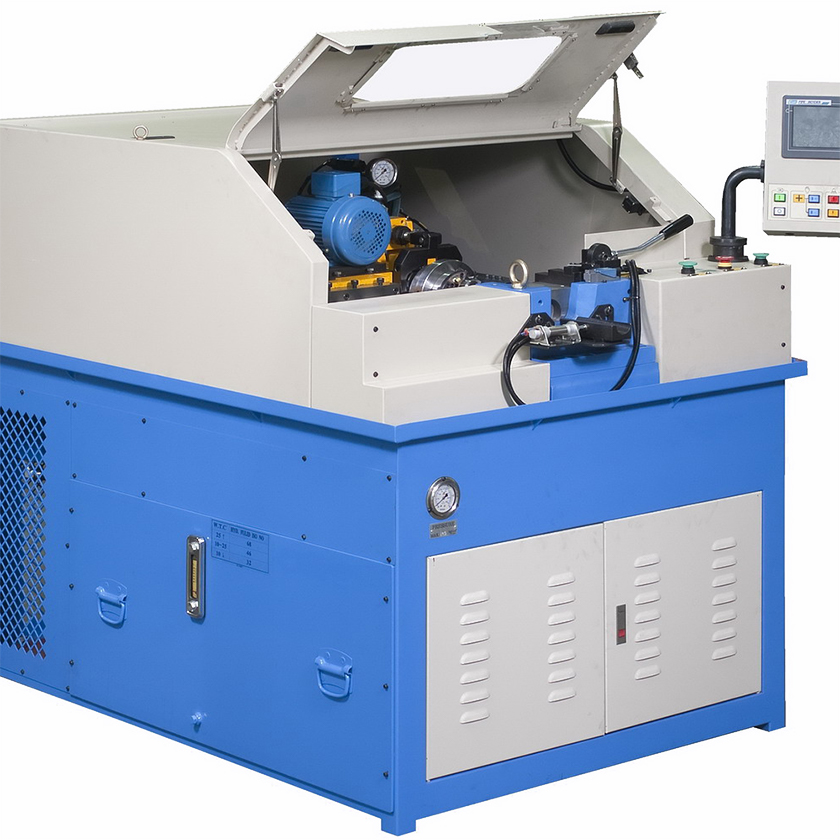

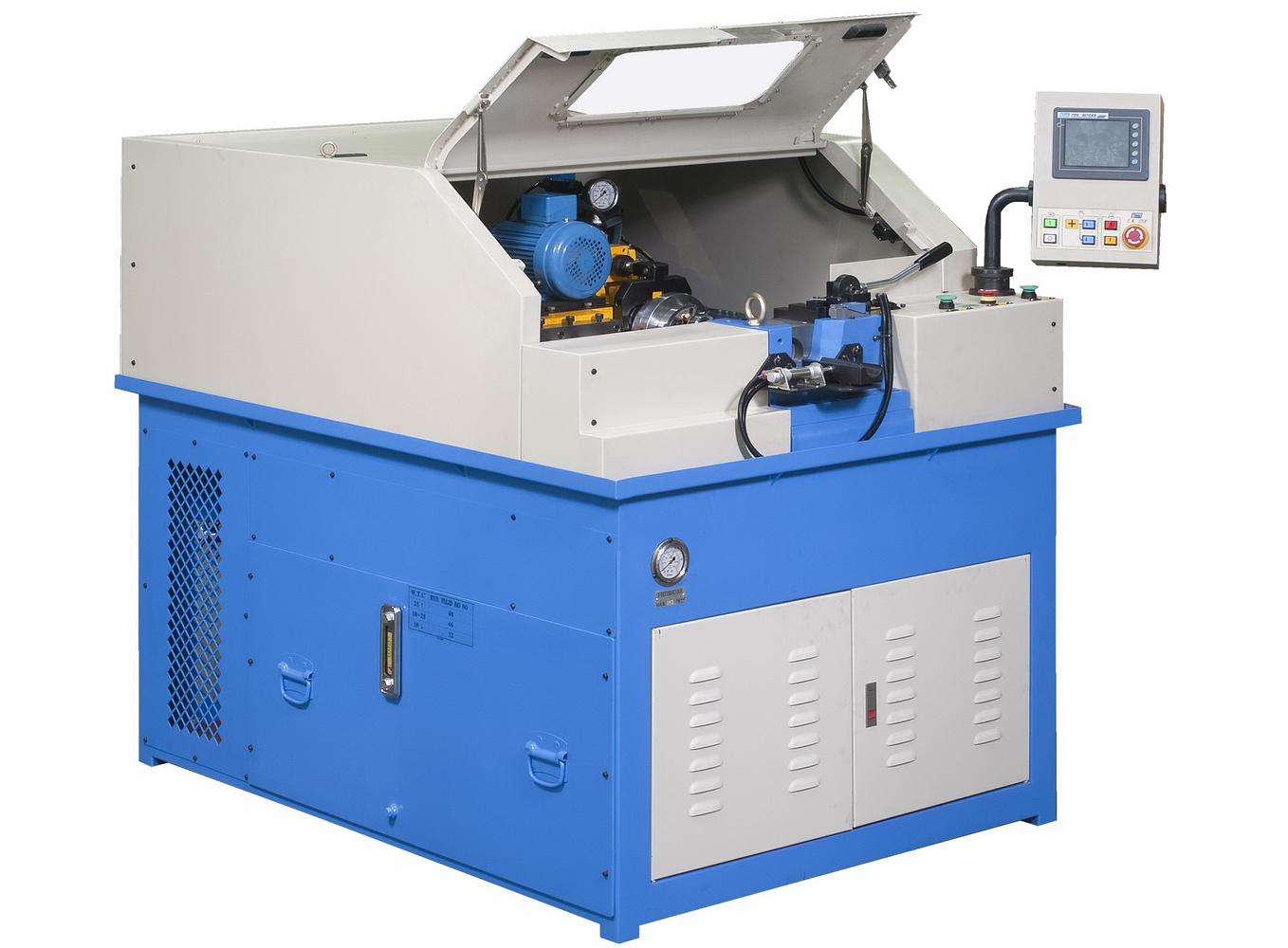

Complex ER series

max capacity OD/mm	max forming stroke/mm	working height /mm	total power /kw	max pressure kgf/cm²	part no.
30	6.5	1000	5.5	170	ER30-5

Video

Machine model

ER30-5
